Aeromium Barcode Software

Free Barcode Software - v1.0

This is a premium quality and modern Free Barcode Software by Aeromium. It includes the two most commonly used barcodes, Code 39 and I2of5 (Interleaved 2 of 5). The software allows the barcode generated to be saved as an image file and easily printed on inkjet or laser printers.

Different options likes Check Digit, Human Text and Text Size are supported to ensure that the barcode will be able to meet the requirements for the different industries like supply chain, manufacturing, warehouse, healthcare, graphics and label design.

Download

    System Requirements

    For Windows Platform :
     Microsoft Windows 2000 ,Windows XP, Windows Vista, Windows 7 or later with 200 MHz processor and above
     256 MB RAM
     5 MB of hard-disk space for program installation
     .Net 2.0 (onwards)

    Download Free Barcode Software - v1.0 (exe) - 345KB

Free Barcode Software User Manual

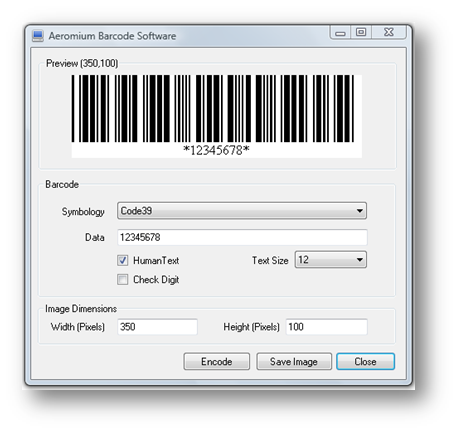

After installation, the Barcode Software can be launched from the Windows Start Menu to generate barcode images quickly and easily. As shown in the diagram below, the barcode software is extremely simple to use and supports the various advance options.

Preview

The preview section displays the barcode after it is generated by the Encode button. It shows the barcode with a width of 350 pixels and height of 100 pixels.

Barcode

This section allows the different aspects of the barcode to be setup and configured. The various options are described below.

    Symbology - Barcode Symbology. Code 39 or I2of5.

        Code 39 Barcode
        This barcode is one of the earliest and most widely adopted barcode. It is simple, easy to use and supports an optional check digit for verification. All         Code39 barcodes have a start and stop "*" character and can be read by almost all industry scanners. This barcode supports numeric digits and         uppercase alphabets.

        I2of5 Barcode
        This is a barcode optimized for numbers, especially numbers with even number of digits. The numbers are encoded in high density to the barcode. If the         number of digits is odd number, a zero will be pre-pended.
Data - A maximum of 255 characters are supported.
Text Size - Font Size of 6 to 99 is supported. In this version, the Text uses the Times New Roman font.
Human Text - This option determines whether a human readable text is encoded into the barcode.
Check Digit - This option determines whether the check digit is encoded into the barcode.

Image Dimensions

Width (Pixels) - The width of the barcode image when saved as a file.
Height (Pixels) - The height of the barcode image when saved as a file.

Encode button

This button encodes the data and generates a barcode for preview. The Check Digit, Human Text, Text Size and Data options are taken into account during the generation process.

Save Image button

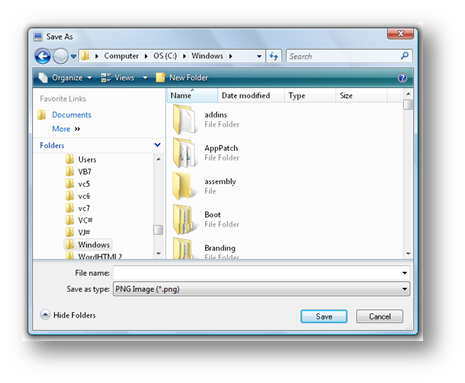

The Save File Dialog will be launched when the Save Image button is pressed. The user can choose to save the barcode in any of the 7 graphics file formats supported as shown below.

File Formats supported

PNG - Portable Network Graphics Format
JPG - Jpeg (Joint Photographic Experts Group) Format
BMP - Bitmap Format
GIF - Graphics Interchange Format
WMF - Windows Metafile Format
EMF - Enhanced Metafile Format
